Correlated and Sense of Space

Deeper DOF and wider FOV captures broaderwider background. Rendering the atmosphere, clearly showings the relationship among subjects, characters and surroundings. Expanding distance between objects and background, reflects the artistic sense of space.

Capturing

The distortion of wide angle lens, exaggerates emotion of characters and highlights the dramatic expression.

Visual Effect

Capturing exaggerating movement, aggrandizes the rhythm of image and enhances the visual impact in the story.

Professional Cine Lenses with Concrete Build

DZOFILM is devoted to exploring the aesthetic of film and design of optics. Both mechanics and optics are designed to be compact and versatile, allowing users to enjoy the smooth and precise operation and every shooting moment with Pictor Zoom.

Parfocal Design, Center image stay sharp during zooming in or out.

No matter from close-up to wide shot, or rapidly zoom out to long shot, under Parfocal design, focus keeps still all the way along.

Minimal Breathing

Thanks to the floating structure, the breathing of Pictor Zoom lenses are negligible during focusing.

Versatile in Ultra compact

At just 1.6kg (3.5 lbs), Pictor zoom can be easily mounted on a crane, jib, tripod, ROV and other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting. Be a better run-and-gun filmmaker with no fear of complicated scenes or quick shooting, save time by not changing lenses frequently, use Pictor zoom, and never miss an inspiring moment.

Gentle Sharpness & Vivid Look

From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.

[Spot Effect] Increases Sense of Separation, Dreamatic Bokeh & Esthetic Transition

During the focus fall-off, 16 blades T2.8 iris generated soft bokeh. The natural transition from focus to de-focus conveys the ambiance and highlights the subject.

Consistent Design & Higher Efficiency

Highly consistent in color and mechanical control, satisfying most shooting demands. Efficient management with the consistent ergonomics of standard M0.8 gear rings. Multiple ways of mounting follow focus, speed up your shooting.

Seek for More Possibility

Interchangeable PL and EF mounting design, with Octopus adapters allowing compatibility with cinema cameras featuring X, L, RF, E, and DX mounts, provides more shooting possibilities.

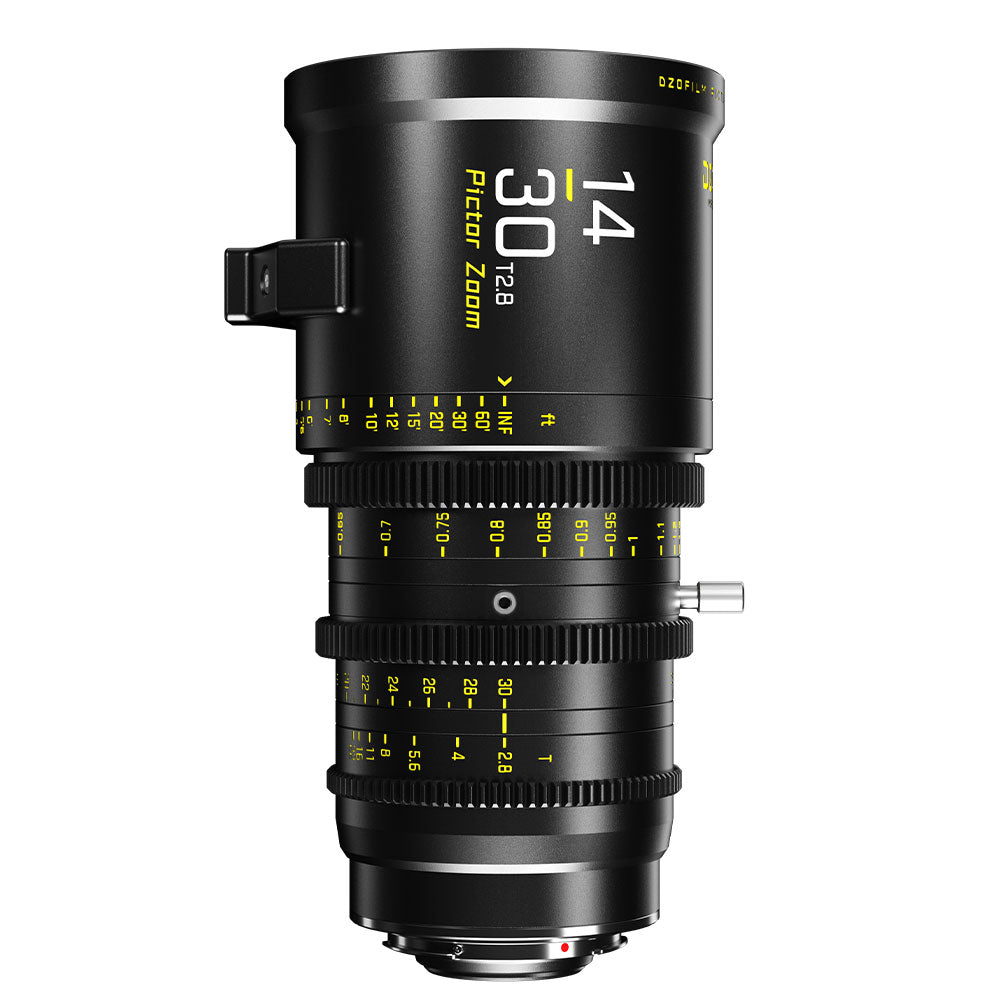

Parameters of 14-30mm lens:

• Focal Length: 14-30mm
• Mount: PL/EF
• T-Stop: T2.8-22
• Image Circle: φ31.5mm(S35)
• Optical Construction: 21 Elements in 17 Groups
• Flange Distance: 52mm(PL) / 44mm(EF)
• Close Focus (From Sensor Plane): 0.6m/2ft
• Zoom Ratio: 2.08X
• Iris Control: 61°
• Focus Control: 270°
• Zoom Control: 100°
• Front Dia.: φ95mm/3.74"
• Length: 173mm(PL)6.81"/ 181mm(EF)7.13"
• Iris Blade: 16
• Filter Size: M86*0.75
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight: ≈1880g

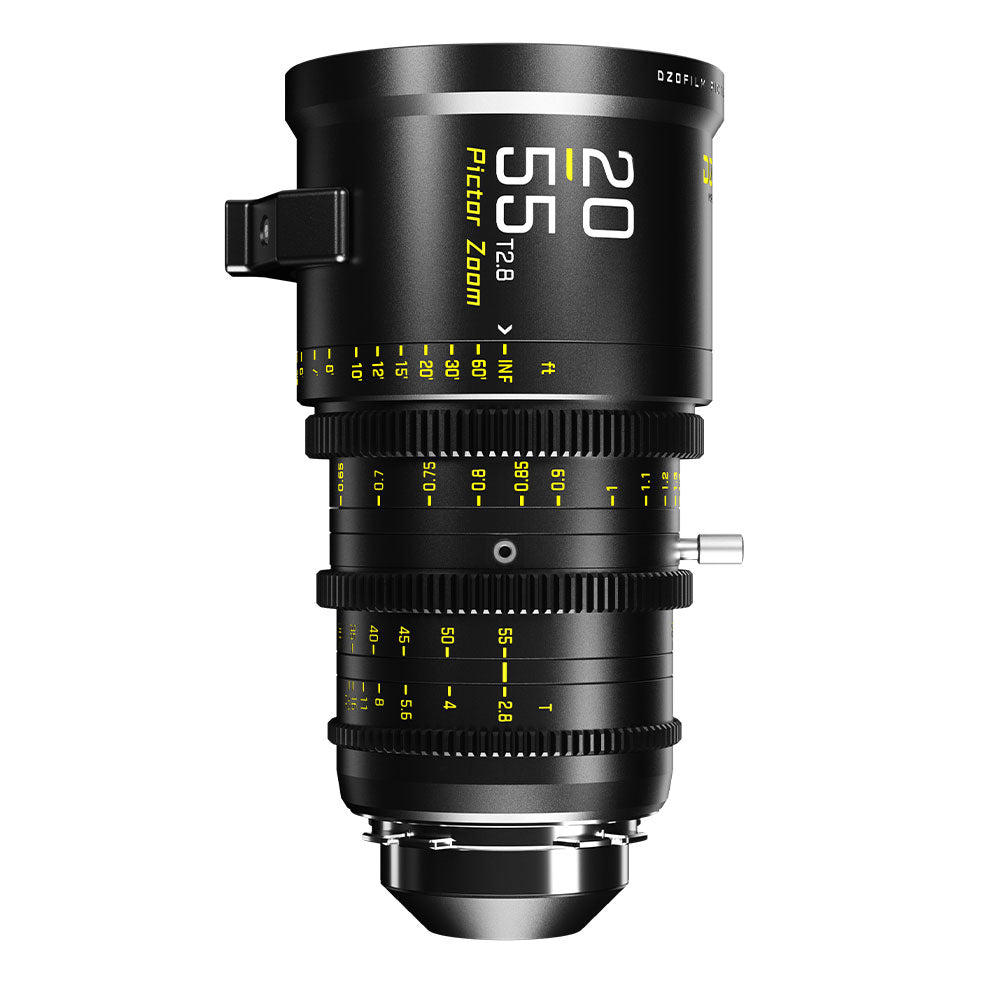

Parameters of 20-55mm lens:

• Focal Length: 20-55mm
• Mount: PL/EF
• T-Stop: T2.8-22
• Image Circle: φ31.5mm(S35)
• Optical Construction: 18 Elements in 15 Groups
• Flange Distance: 52mm(PL) / 44mm(EF)
• Close Focus (From Sensor Plane): 0.6m/2ft
• Zoom Ratio: 2.75X
• Iris Control: 65°
• Focus Control: 270°
• Zoom Control: 100°
• Front Dia.: φ95mm/3.74"
• Length: 164mm(PL)6.46"/ 171.9mm(EF)6.77"
• Iris Blade: 16
• Filter Size: M86*0.75
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight: ≈1520g

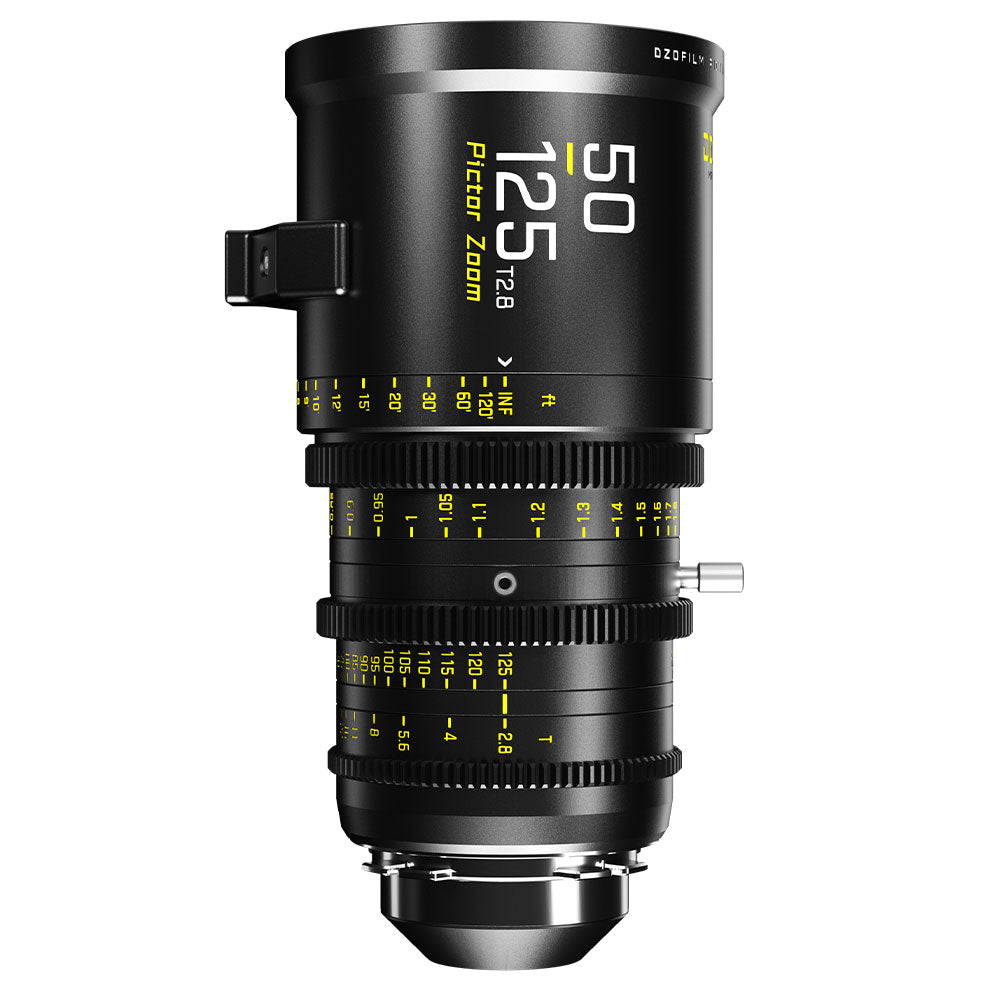

Parameters of 50-125mm lens:

• Focal Length: 50-125mm
• Mount: PL/EF
• T-Stop: T2.8-22
• Image Circle: φ31.5mm(S35)
• Optical Construction: 18 Elements in 13 Groups
• Flange Distance: 52mm(PL) / 44mm(EF)
• Close Focus (From Sensor Plane): 0.8m/2ft8in
• Zoom Ratio: 2.5X
• Iris Control: 72°
• Focus Control: 270°
• Zoom Control: 100°
• Front Dia.: φ95mm/3.74"
• Length: 175mm(PL)6.89"/ 182.9mm(EF)7.20"
• Iris Blade: 16
• Filter Size: M86*0.75
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight: ≈1700g
