Versatile Coverage, Unlimited Perspective

The Tango series offers an impressive range of focal lengths, from wide-angle to telephoto, allowing filmmakers to capture everything from sweeping landscapes to intimate close-ups with stunning details.

With focal lengths spanning from 18mm to 280mm, the Tango lineup provides filmmakers with versatility and endless creative possibilities. The 18-90mm lens has a consistent T2.9 aperture throughout its 5x zoom range, while the 65-280mm lens boasts a T2.9 to T4 aperture with a 4.3x zoom ratio.

Aesthetic Bokeh, Captivating Visual

With a 16-blade aperture diaphragm, the Tango Zoom series creates smooth and alluring bokeh, drawing viewers into a world of visual storytelling. Its exceptional color rendition renders lifelike skin tones on the screen, making it ideal for a Wide range of production scenarios, including fashion, documentaries, and sports shows.

Cinematic Immersion with Artistic Colors

The Tango zoom series features advanced optical design that corrects chromatic aberrations for optimal image quality and color accuracy. This lineup ensures consistent colors, controlled distortion, and minimal focus breathing, delivering an immersive visual experience with unrivaled brilliance.

Intuitive Ergonomics, Unparalleled Precision

The Tango Zoom lenses feature a powerful flange-back adjustment mechanism, which enhances efficiency and adaptability on set. It can be locked in place using the provided screwdriver, preventing accidental adjustments by camera operators.

With uniform width and positioning of the focus, iris, and zoom rings, lens swapping becomes effortless, saving time and effort during production.

Seamless Integration with MOVCAM Servo Unit (Optional)

The Tango Zoom series combines cinema-grade optics with ENG-style functionality. These lenses support servo compatibility, integrating seamlessly with ENG cameras for remote control of focus, iris, and zoom. Ideal for broadcasting, events, and versatile shooting scenarios, they meet the demands of experienced cinematographers seeking professional performance.

Fluorescent Markings for Practical Operation

Thoughtfully designed to accommodate the demands of low-light shooting, all focus ring, zoom ring, and aperture ring markings are coated with luminous paint.

This ingenious integration enhances clarity, empowering focus pullers and camera operators to effortlessly discern crucial details above the lens, elevating on-set efficiency.

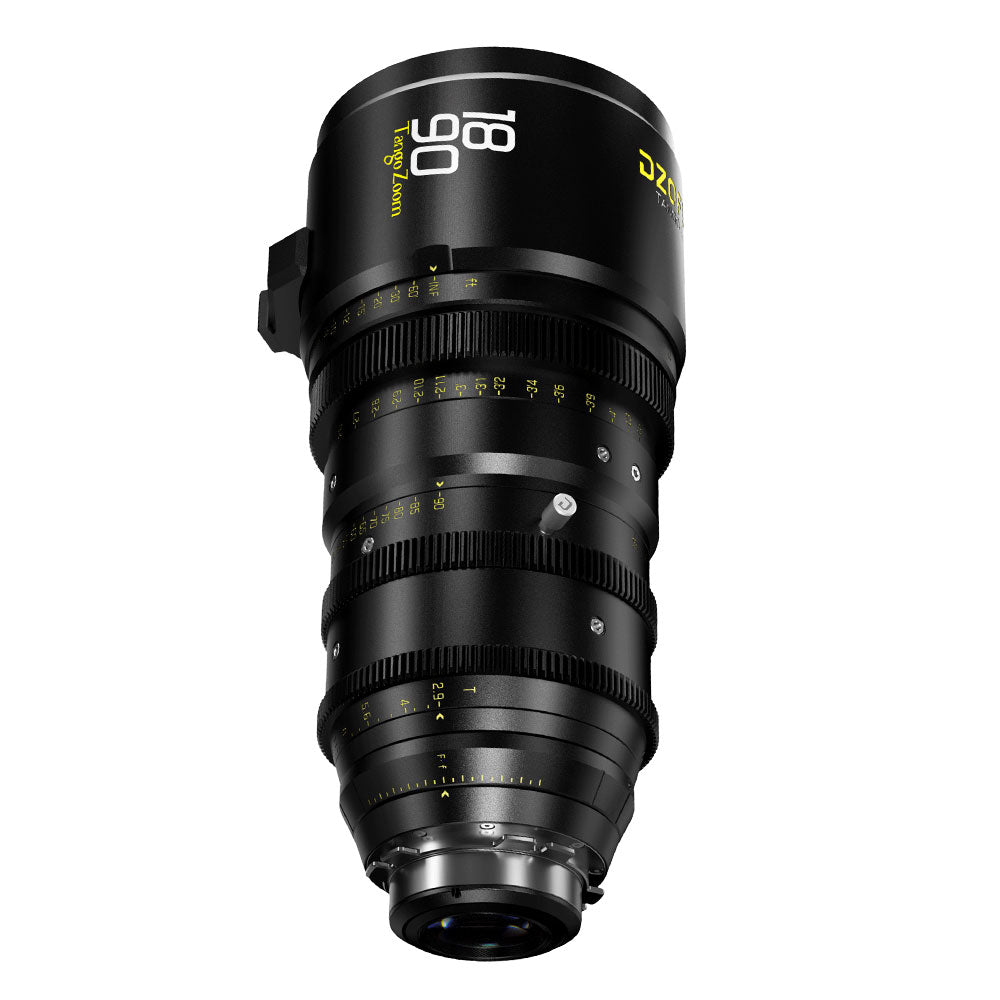

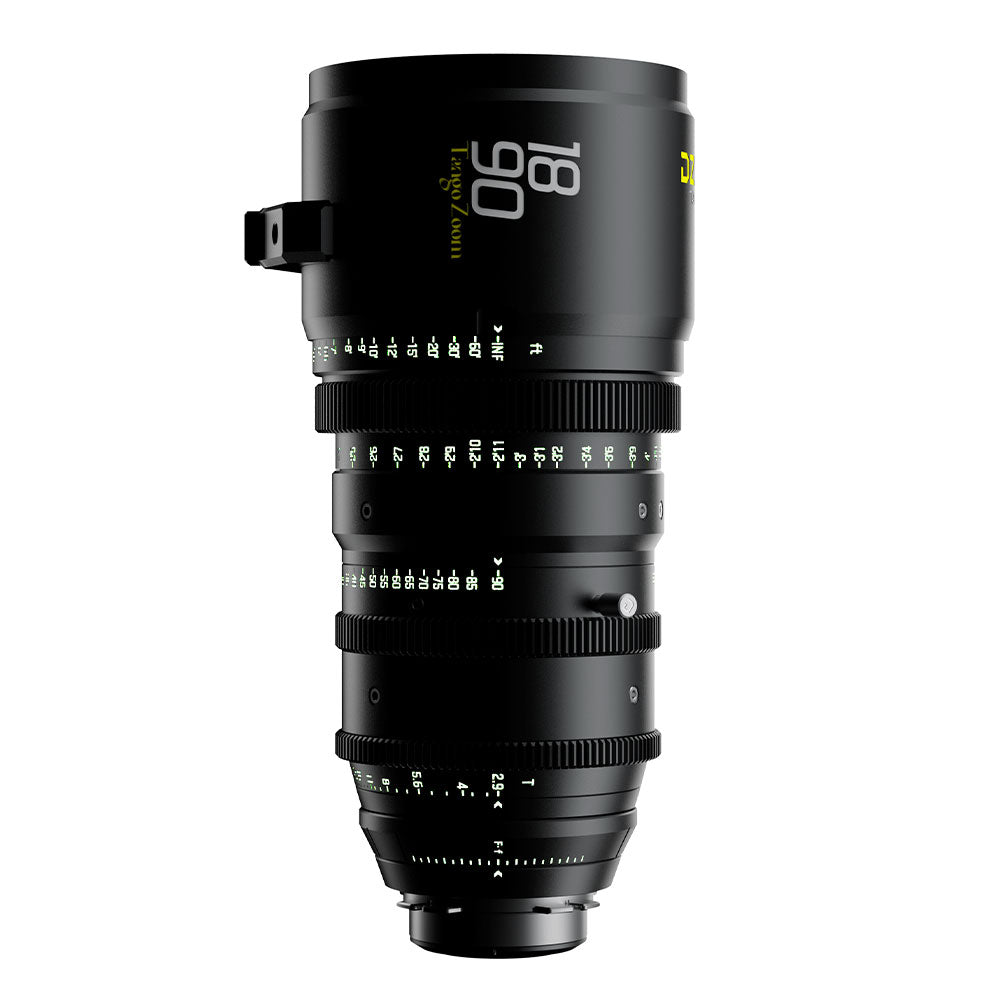

Parameters of the 18-90mm:

• Focal Length: 18-90mm
• Mount: PL/EF
• Aperture: T2.9-T22
• Image Circle: φ31.5mm(S35)
• Construction of Optics: 24 Elements in 17 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.7m/2ft3in
• Zoom Ratio: 5X
• Iris Control: Manual(74.1°)
• Focus control: Manual(270°)
• Zoom control: Manual(100°)
• Front Dia.: ∮114mm/4.48in
• Length (From Lens Front to Flange Plane): 249.1mm/9.8" PL mount, 256.4mm/10.1" EF mount
• Iris Blade: 16
• Filter Size: M105
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈3539g

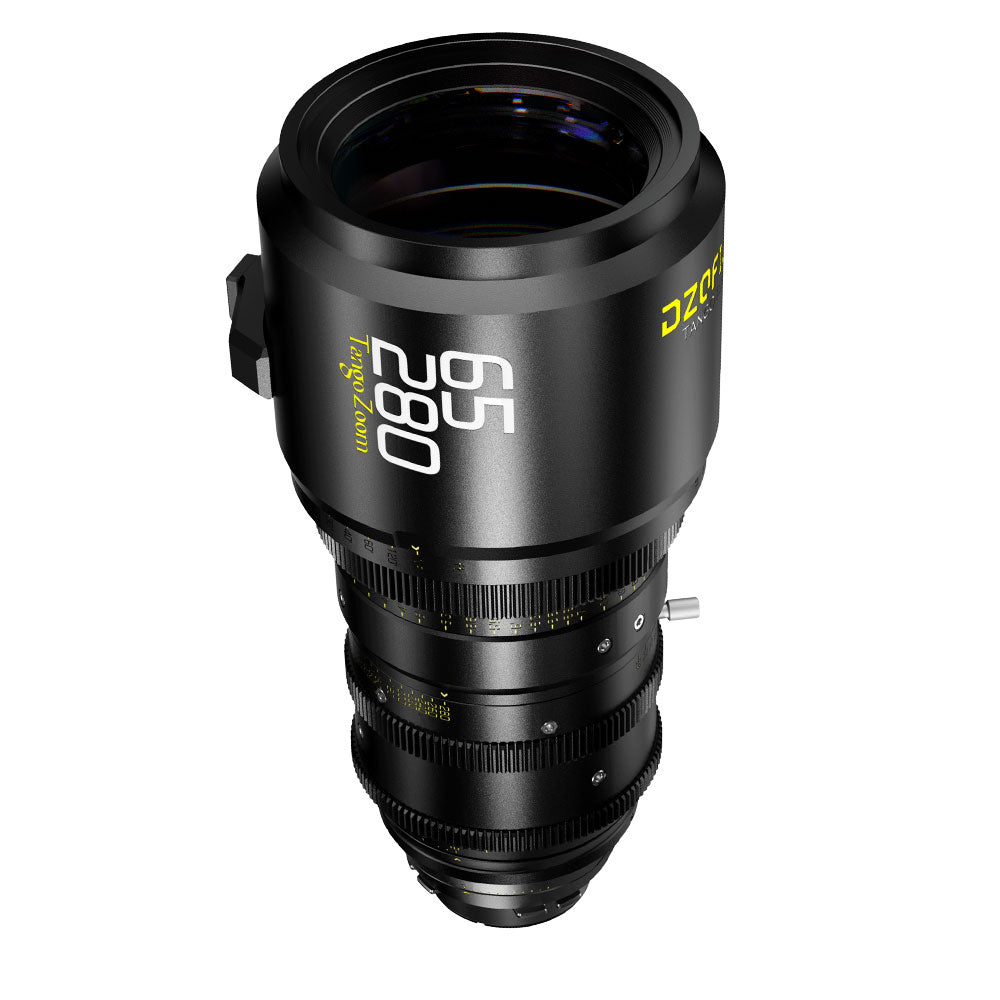

Parameters of the 65-280mm:

• Focal Length: 65-280mm
• Mount: PL/EF
• Aperture: T2.9/4-T22
• Image Circle: φ31.5mm(S35)
• Construction of Optics: 21 Elements in 17 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 1.1m/3ft7in
• Zoom Ratio: 4.31X
• Iris Control: Manual(73.5°)
• Focus control: Manual(270°)
• Zoom control: Manual(100°)
• Front Dia.: ∮114mm/4.48in
• Length (From Lens Front to Flange Plane): 267.1mm/10.5" PL mount, 274.4mm/10.8" EF mount
• Iris Blade: 16
• Filter Size: M105
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈3962g
