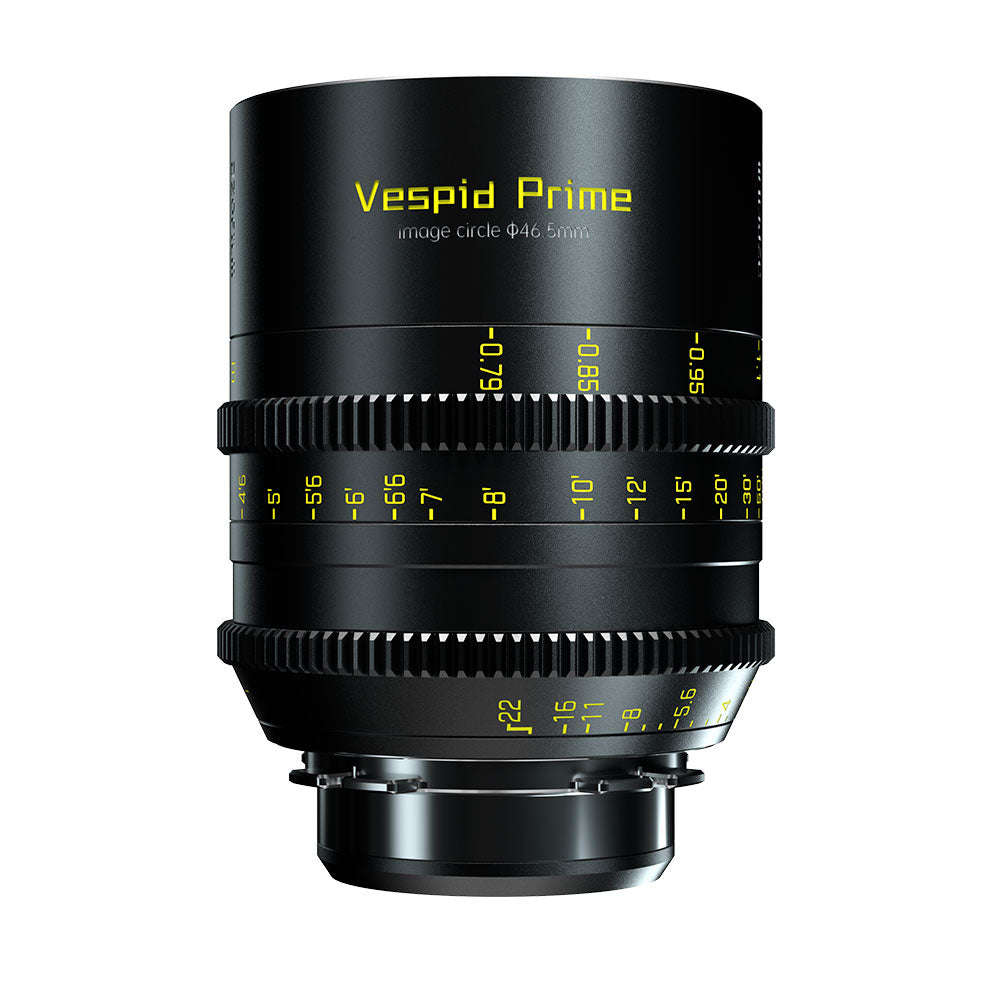

Innovative Design, Inspiring Visuals
The Vespid Series offers superior image quality with a perfect balance of modern and vintage aesthetics. Its APO design produces sharp and accurate images with minimal chromatic aberration.
Gorgeous Bokeh, Aesthetic Appeal
Vespid lenses excel in optical precision, effectively controlling aberrations for remarkable resolution and true-to-life colors. They create soft and natural bokeh for organic and emotional images with smooth focus transitions, while their internal design minimizes focus breathing.
Precise Mechanism, Smooth Operation
The lenses are fully manual with 270° of focus rotation, giving you smooth and accurate focus control. The shared position of the focus and iris gears across the lens set allows for fast lens changes with minimal adjustment of lens accessories. The focus and iris rings are smooth to operate, allowing for precise adjustments to focus and exposure.
Cine-standard Design for Versatile Applications
The Vespid series covers a range of 11 focal lengths, from ultra-wide-angle to standard and telephoto, catering to diverse shooting scenarios. A comprehensive design adhering to industry standards ensures a consistent visual style.
Compatible with Vista Vision large-format sensors, these lenses meet the varied demands of independent filmmaking and large-scale productions.
Compact and Solid Build
The lens housing is crafted from a durable aluminum alloy, making it robust and reliable in various environments. The lenses' compact and lightweight designs make them ideal for handheld, gimbal, and drone work.
Inclusive Compatibility, Unlocking Potential
Vespid Prime lenses come with a versatile interchangeable mounting system that accommodates both PL and EF mounts. They can also be used with other mounts compatible with Octopus adapters. Additionally, the lenses have a filter thread size of 77mm, which enables effortless use with a wide range of filters.
| Focal Length | 12 mm | 16 mm | 21 mm | 25 mm | 35 mm | 40 mm | 50 mm | 75 mm | 90 mm | 100 mm | 125 mm |
| Mount | PL / EF |
| Aperture | T2.8-T22 | T2.1-T22 | T2.8-T22 | T2.1-T22 |
| Image circle | φ46.5mm(VV/FF) |
| Construction of Optics | 15 Elements in 10 Groups | 14 Elements in 10 Groups | 13 Elements in 9 Groups | 12 Elements in 11 Groups | 11 Elements in 9 Groups | 10 Elements in 9 Groups | 9 Elements in 7 Groups | 11 Elements in 9 Groups | 9 Elements in 7 Groups | 10 Elements in 8 Groups |
| Flange Distance | 52mm(PL)/44mm(EF) |
| Close Focus | 0.2m/8in | 0.25m/10in | 0.28m/11in | 0.3m/1ft | 0.46m/1.6ft6in | 0.6m/2ft | 0.258m/10.2in | 0.7m/2ft4in | 0.79m/2ft7in |
| (from sensor plane) |
| Max.Mag. Ratio | / | 1.5X | / |
| Iris control | Manual (75°) | Manual (50°) | Manual (68°) | Manual (63°) | Manual (68°) | Manual (58°) | Manual (68°) | Manual (83°) | Manual (84°) |
| Focus control | Manual (270°) | Manual (300°) | Manual (270°) |
| front Dia. | ∮80mm/3.15" |
| Length | 72mm/2.83" | 87mm/3.43" | 100mm/3.94" | 87mm/3.43" | 112mm/4.41" | 100mm/3.94" |
| (from lens front to flange plane) |
| Iris Blade | 10 | 16 |
| Filter Size | M77 | / | M77 |
| Gear Pitch | 0.8 Mod |
| Material | Aluminum Alloy |
| Weight (Product) | ≈725g | ≈930g | ≈935g | ≈940g | ≈834g | ≈943g | ≈732g | ≈865g | ≈800g | ≈890g | ≈924g |
