Innovative Design, Inspiring Visuals

The Vespid Series offers superior image quality with a perfect balance of modern and vintage aesthetics. Its APO design produces sharp and accurate images with minimal chromatic aberration.

Gorgeous Bokeh, Aesthetic Appeal

Vespid lenses excel in optical precision, effectively controlling aberrations for remarkable resolution and true-to-life colors. They create soft and natural bokeh for organic and emotional images with smooth focus transitions, while their internal design minimizes focus breathing.

Precise Mechanism, Smooth Operation

The lenses are fully manual with 270° of focus rotation, giving you smooth and accurate focus control. The shared position of the focus and iris gears across the lens set allows for fast lens changes with minimal adjustment of lens accessories. The focus and iris rings are smooth to operate, allowing for precise adjustments to focus and exposure.

Broad Perspectives, Infinite Creativity

Vespid 12mm offers a diagonal field of view of 126° on Vista Vision format, with a horizontal view of 119° and a vertical view of 81°. While the ultra-wide-angle composition boosts cinematic and dramatic effects, the extremely expansive visual field offers stunningly rich details. This opens up more opportunities for visual storytelling.

Cine-standard Design for Versatile Applications

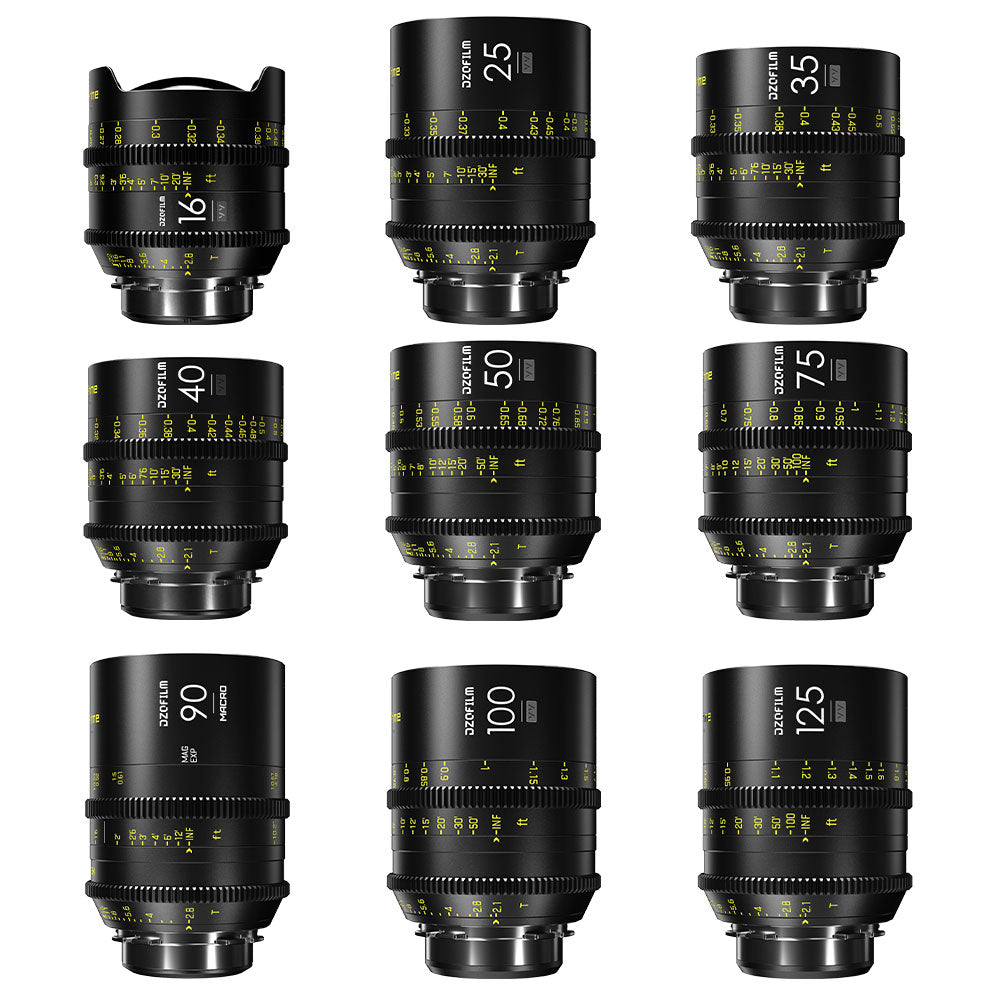

The Vespid series covers a range of 11 focal lengths, from ultra-wide-angle to standard and telephoto, catering to diverse shooting scenarios. A comprehensive design adhering to industry standards ensures a consistent visual style.

Compatible with Vista Vision large-format sensors, these lenses meet the varied demands of independent filmmaking and large-scale productions.

Compact and Solid Build

The lens housing is crafted from a durable aluminum alloy, making it robust and reliable in various environments. The lenses' compact and lightweight designs make them ideal for handheld, gimbal, and drone work.

Inclusive Compatibility, Unlocking Potential

Vespid Prime lenses come with a versatile interchangeable mounting system that accommodates both PL and EF mounts. They can also be used with other mounts compatible with Octopus adapters. Additionally, the lenses have a filter thread size of 77mm, which enables effortless use with a wide range of filters.

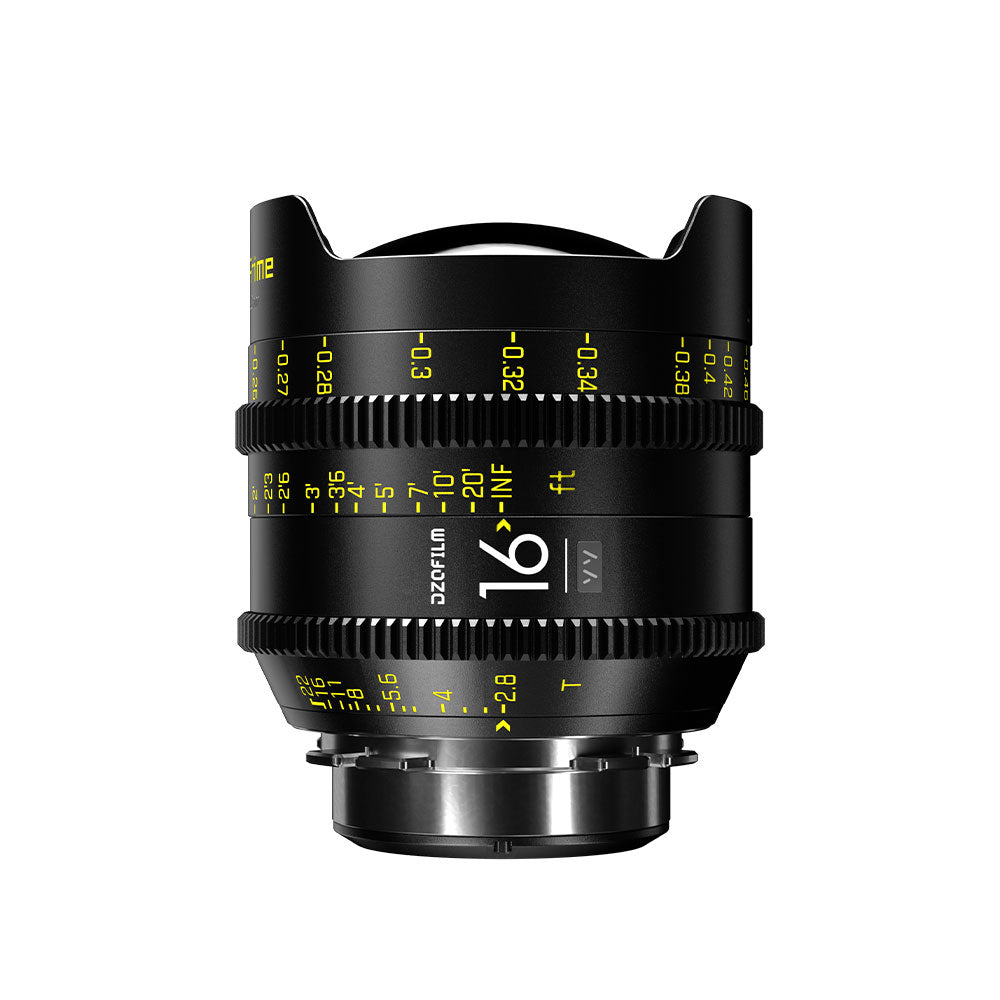

Parameters of 16mm lens:

• Focal Length: 16mm
• Mount: PL/EF
• Aperture: T2.8-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 14 Elements in 10 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.25m/10in
• Max.Mag Ratio: /
• Iris Control: Manual (50°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 87mm/3.43"
• Iris Blade: 16
• Filter Size: /
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈930g

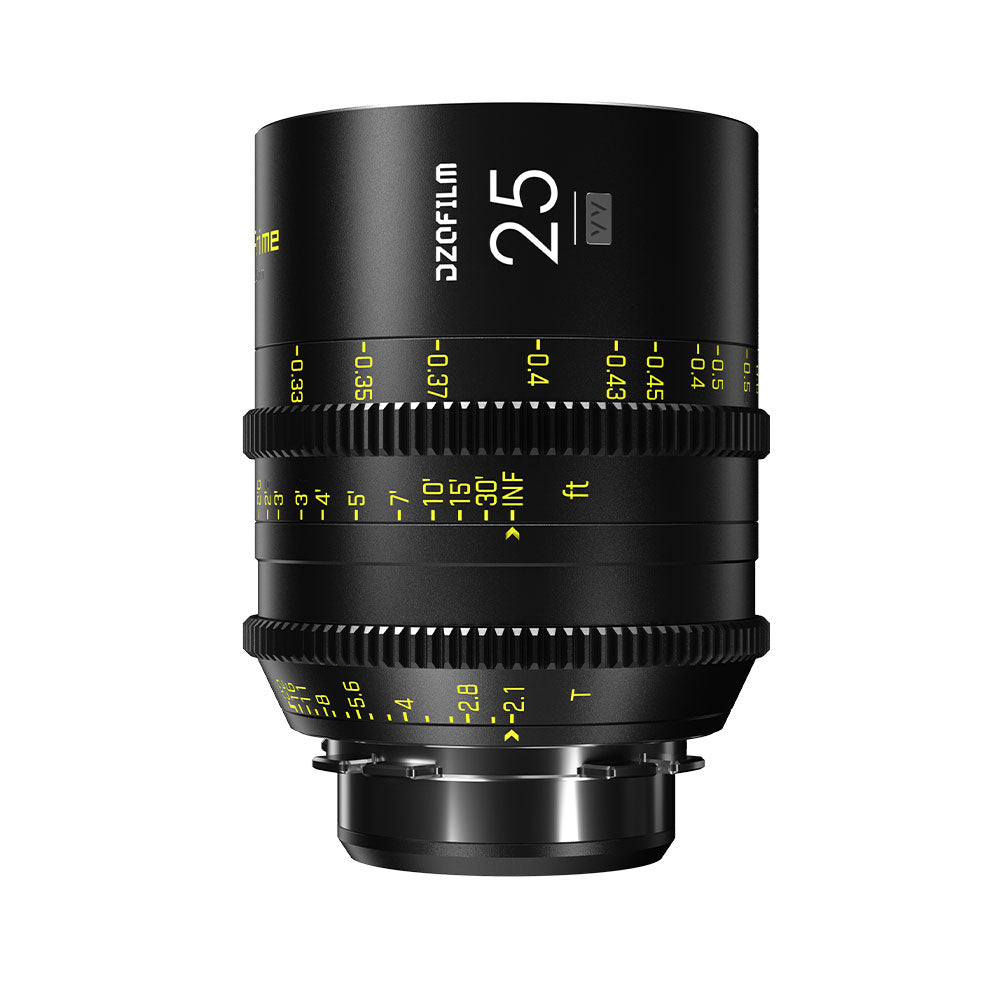

Parameters of 25mm lens:

• Focal Length: 25mm
• Mount: PL/EF
• Aperture: T2.8-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 12 Elements in 11 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.3m/1ft
• Max.Mag Ratio: /
• Iris Control: Manual (68°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 100mm/3.94"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈1021g

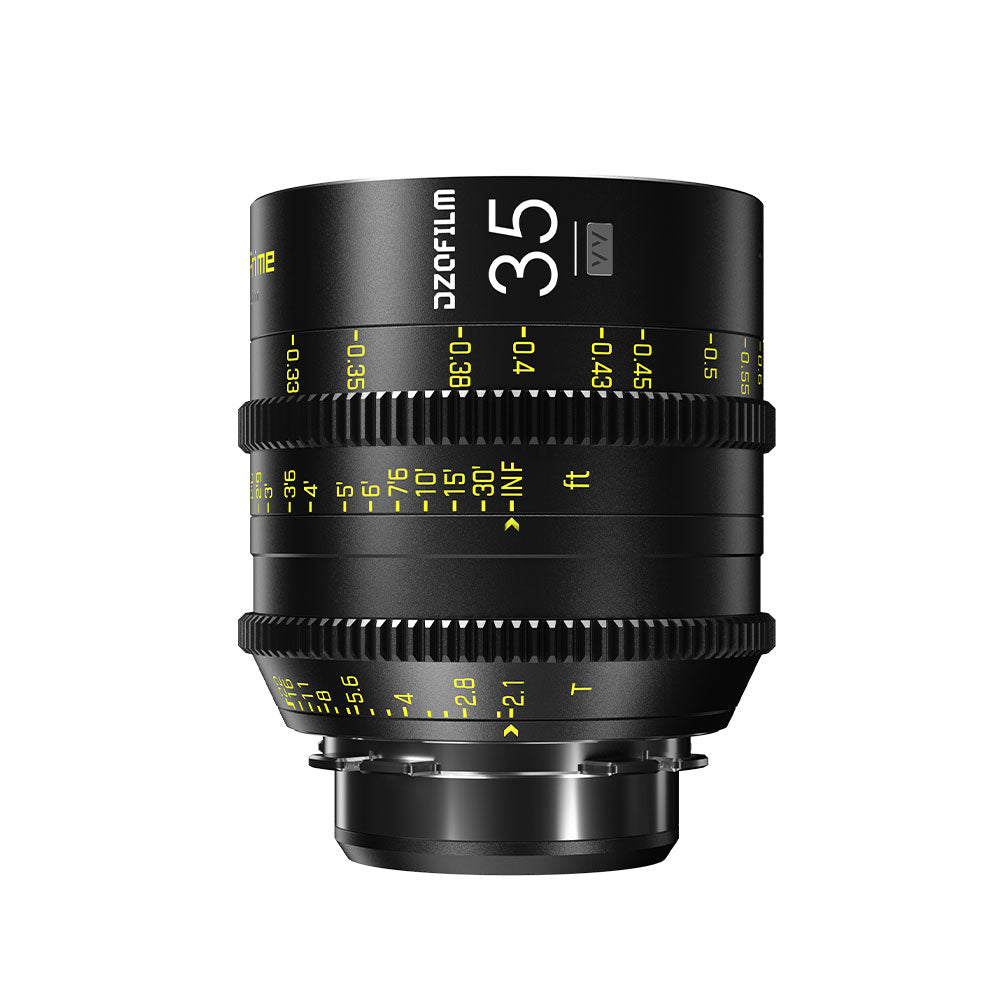

Parameters of 35mm lens:

• Focal Length: 35mm
• Mount: PL/EF
• Aperture: T2.1-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 11 Elements in 9 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.3m/1ft
• Max.Mag Ratio: /
• Iris Control: Manual (63°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 87mm/3.43"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈962g

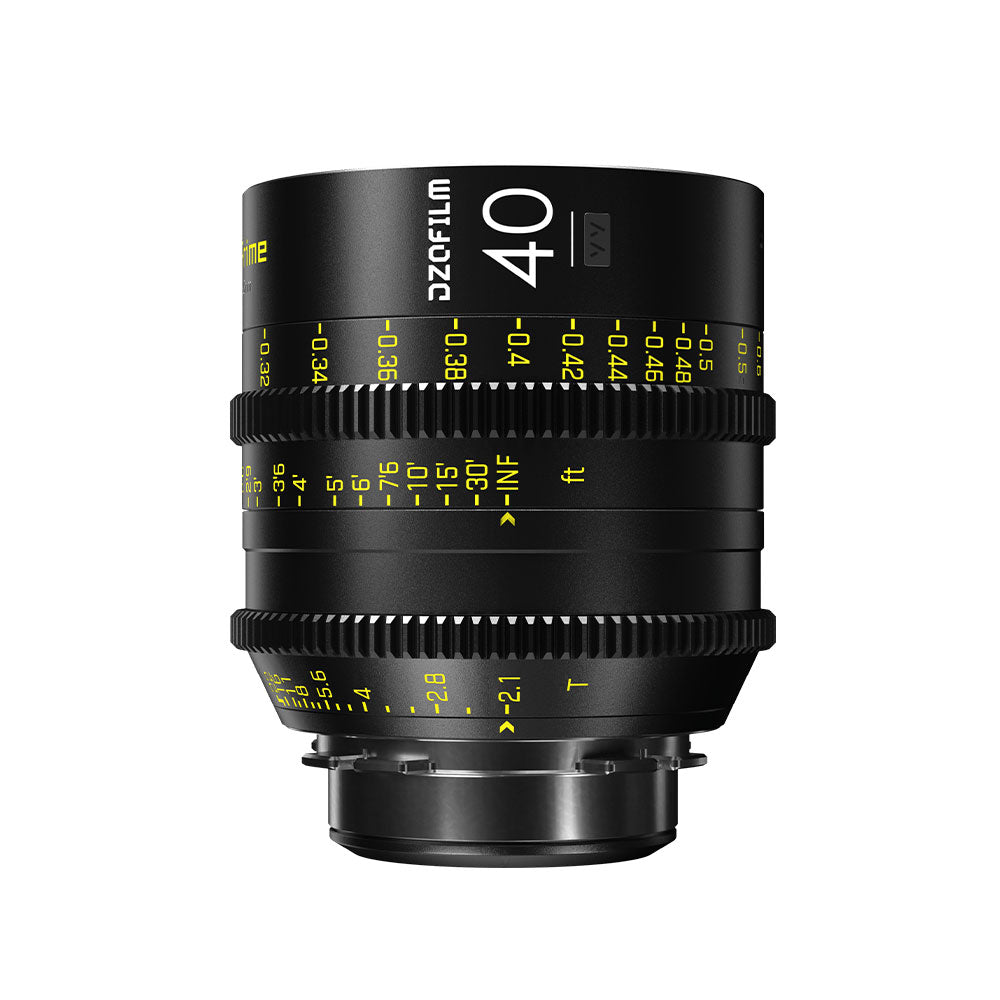

Parameters of 40mm lens:

• Focal Length: 40mm
• Mount: PL/EF
• Aperture: T2.1-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 10 Elements in 9 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.3m/1ft
• Max.Mag Ratio: /
• Iris Control: Manual (68°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 87mm/3.43"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈905g

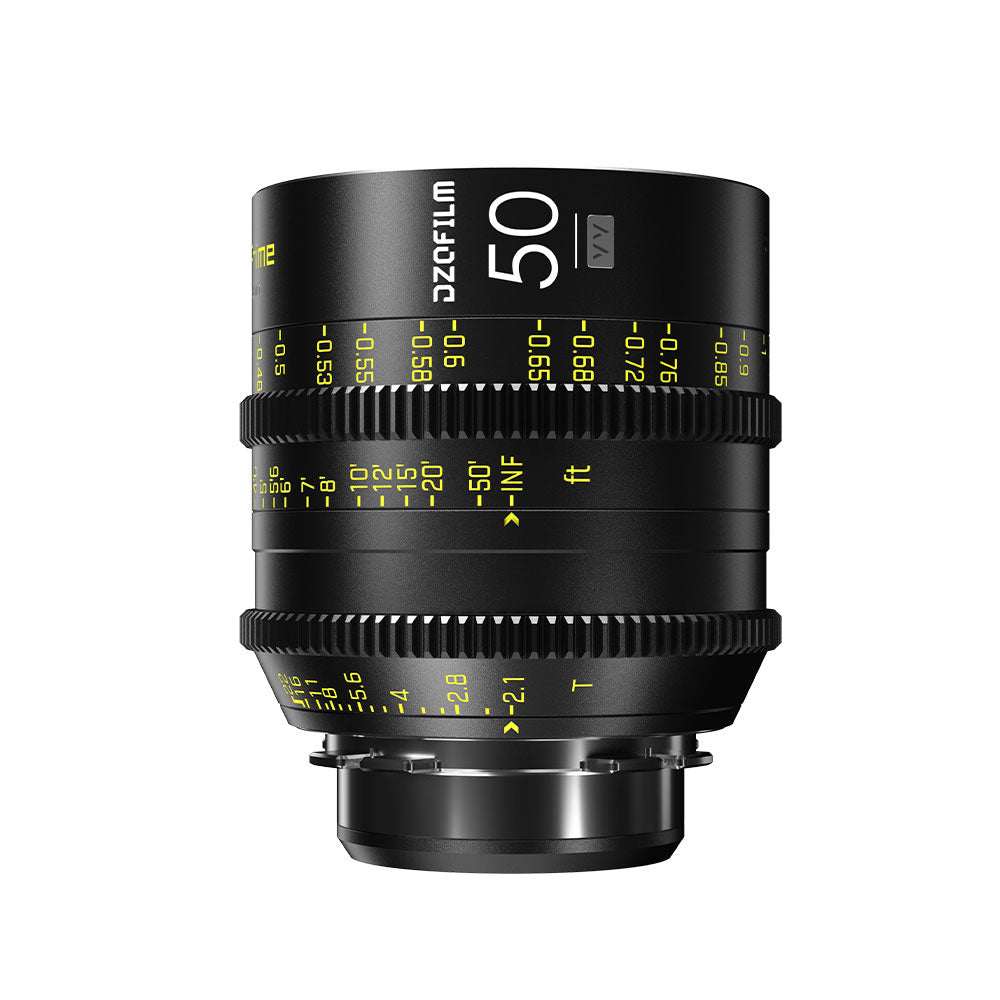

Parameters of 50mm lens:

• Focal Length: 50mm
• Mount: PL/EF
• Aperture: T2.1-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 9 Elements in 7 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.46m/1.6ft6in
• Max.Mag Ratio: /
• Iris Control: Manual (58°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 87mm/3.43"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈857g

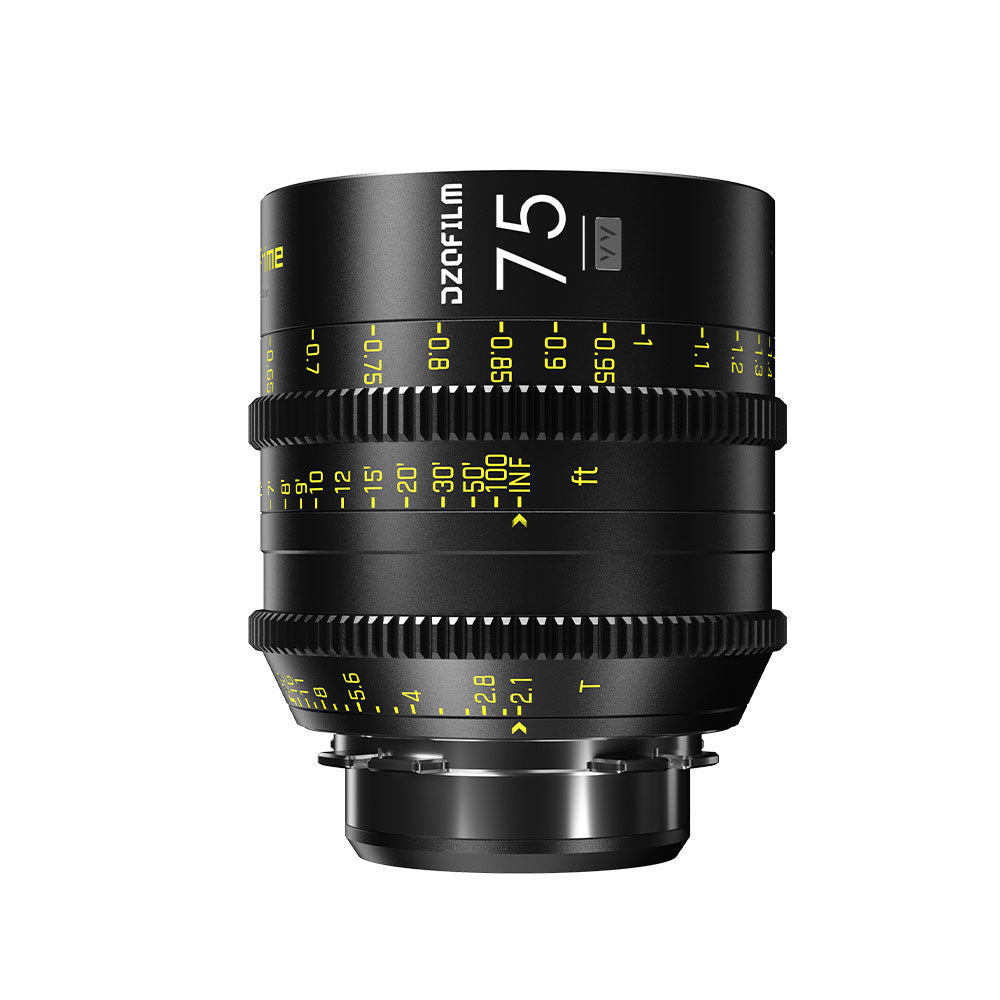

Parameters of 75mm lens:

• Focal Length: 75mm
• Mount: PL/EF
• Aperture: T2.1-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 9 Elements in 7 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.6m/2ft
• Max.Mag Ratio: /
• Iris Control: Manual (68°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 87mm/3.43"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈887g

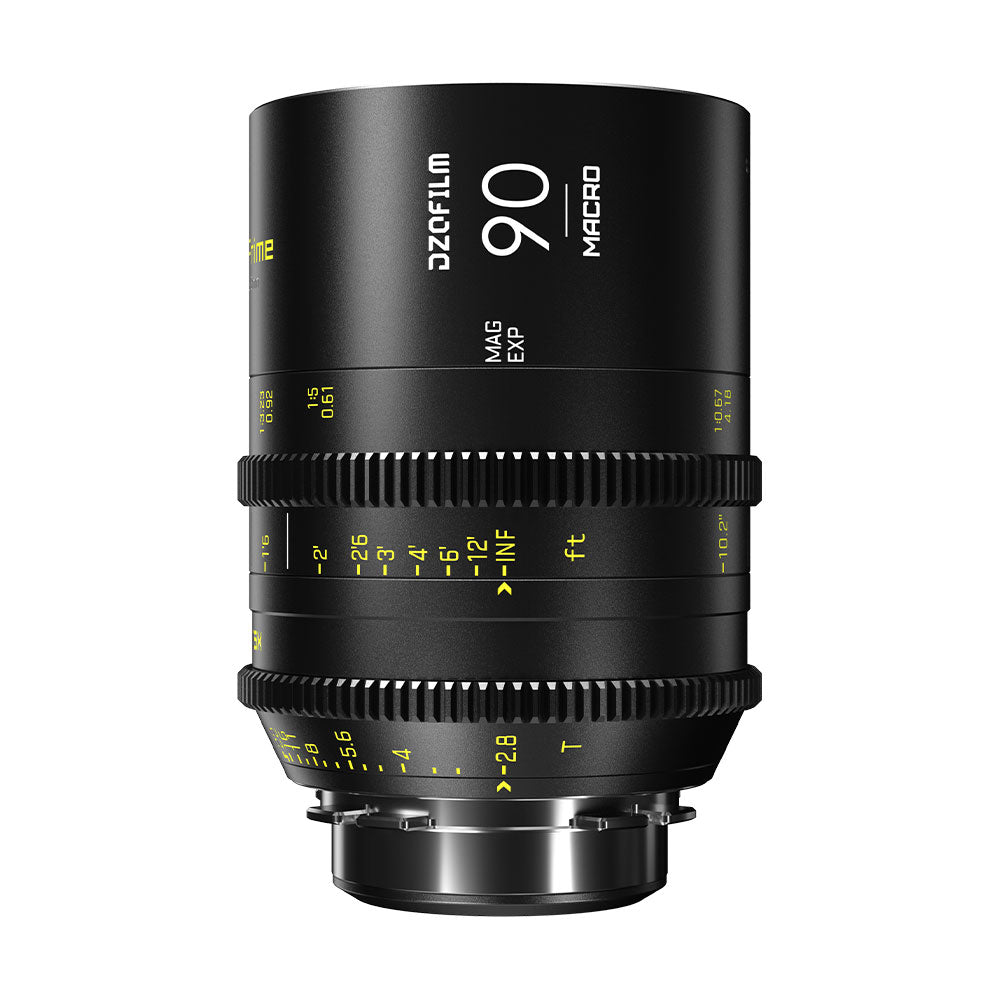

Parameters of 90mm lens:

• Focal Length: 90mm
• Mount: PL/EF
• Aperture: T2.8-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 11 Elements in 9 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.258m/10.2in
• Max.Mag Ratio: 1.5X
• Iris Control: Manual (68°)
• Focus Control: Manual (300°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 112mm/4.41"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈839g

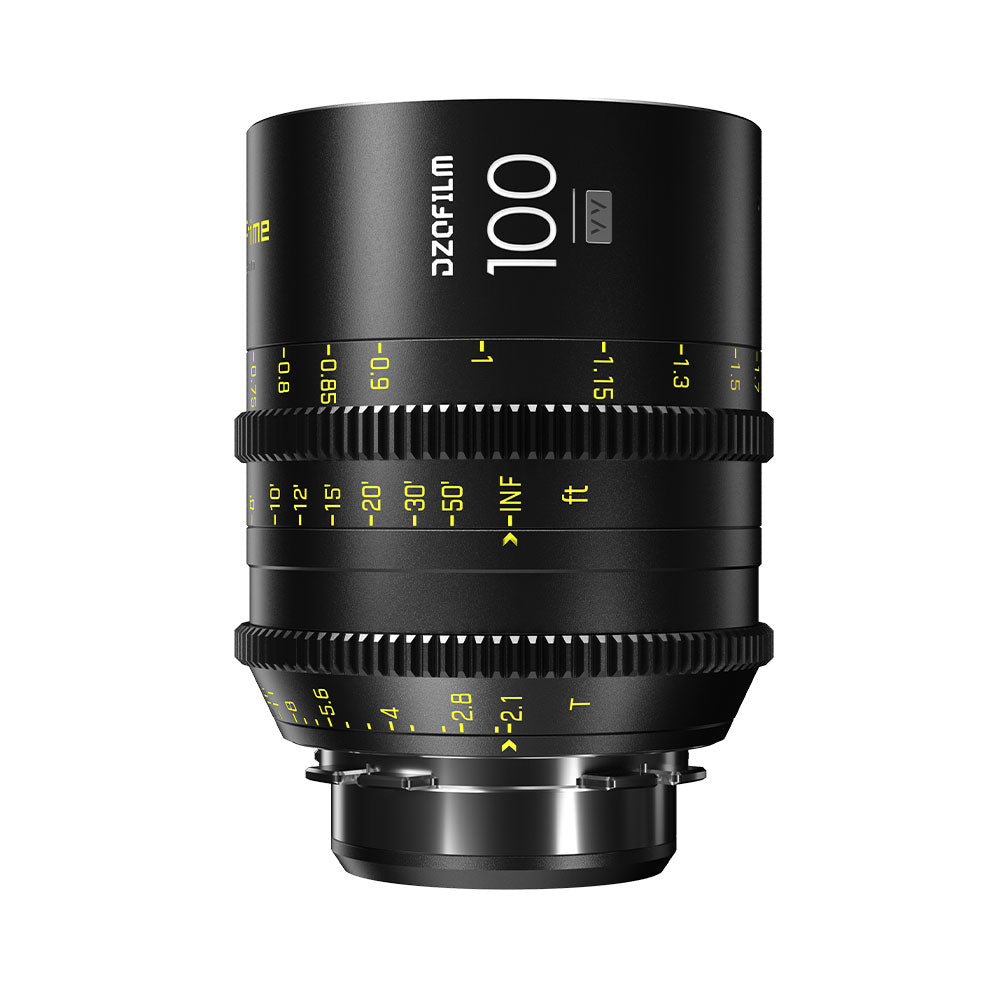

Parameters of 100mm lens:

• Focal Length: 100mm
• Mount: PL/EF
• Aperture: T2.1-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 11 Elements in 9 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.7m/2ft4in
• Max.Mag Ratio: /
• Iris Control: Manual (83°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 100mm/3.94"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈945g

Parameters of 125mm lens:

• Focal Length: 125mm
• Mount: PL/EF
• Aperture: T2.1-T22
• Image Circle: φ46.5mm(VV/FF)
• Construction of Optics: 10 Elements in 8 Groups
• Flange Distance: 52mm(PL)/44mm(EF)
• Close Focus (From Sensor Plane): 0.79m/2ft7in
• Max.Mag Ratio: /
• Iris Control: Manual (84°)
• Focus Control: Manual (270°)
• Front Dia.: ∮80mm/3.15"
• Length (From Lens Front to flange Plane): 100mm/3.94"
• Iris Blade: 16
• Filter Size: M77
• Gear Pitch: 0.8 Mod
• Material: Aluminum Alloy
• Weight (Product): ≈981g
