This innovative video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINGC carbon fiber twin leg with ground spreader tripod.

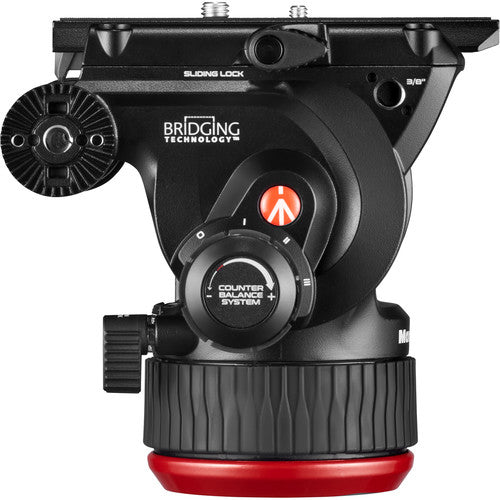

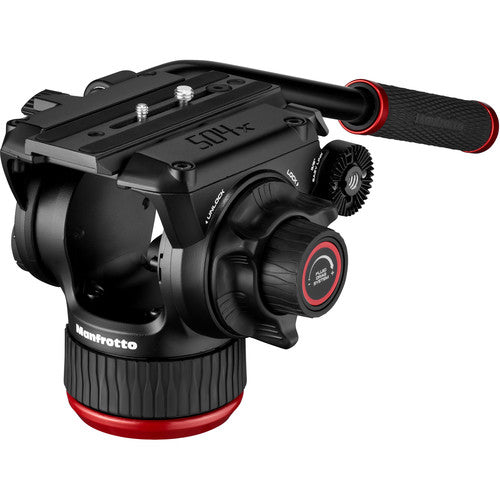

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The head attaches to the tripod via a dedicated 75mm half ball.

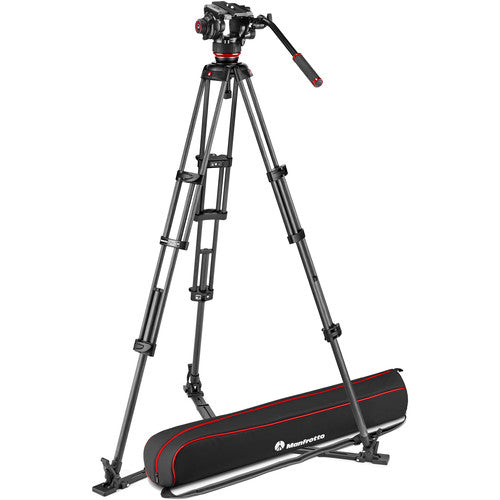

The MVTTWINGC carbon fiber twin leg with ground spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl, and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing you to use the tripod in combination with the middle spreader Manfrotto 537SPRB and rubber shoes 565, which are sold separately.

Leg locks are secure and reliable and twin spiked feet are provided for external use, e.g. in the grass.

Supplied with its own padded carrying bag.

Specifications:

• Weight 5.57 kg
• Counterbalance System : Variable Steps
• Counterbalance Weight :2.2, 4.4, 6.5 kg
• Maximum Height: 175 cm
• Min Height: 49 cm
• Base Diameter: 75 mm
• Center Of Gravity: 55 mm
• Center Column: no centre column
• Closed Length: 85 cm
• Top Attachment: 1/4″ screw, 3/8″ screw
• Safety Payload Weight: 12 kg
• Powered By (Batteries): Lithium
• Easy Link: Yes (with antirotation)
• Front Tilt: -70° / +90°
• Head Type: Video/Fluid Head
• Leg Type: Twin
• Leg Lock Type: Flip Lock
• Leg Sections: 3
• Material: Carbon Fiber
• Maximum Working Temperature: 60 °C
• Minimum Working Temperature: -30 °C
• Pan Bar Included: Yes
• Pan Drag: continuously adjustable from 0 to max level
• Panoramic Rotation: 360 °
• Plate Type: 504PLONGR-1
• Quick Release: Yes
• Spreader: low level - variable arm length
• Tilt Drag: continuously adjustable from 0 to max level
