The world’s first and only mirrorless 10x ultra-telephoto zoom.

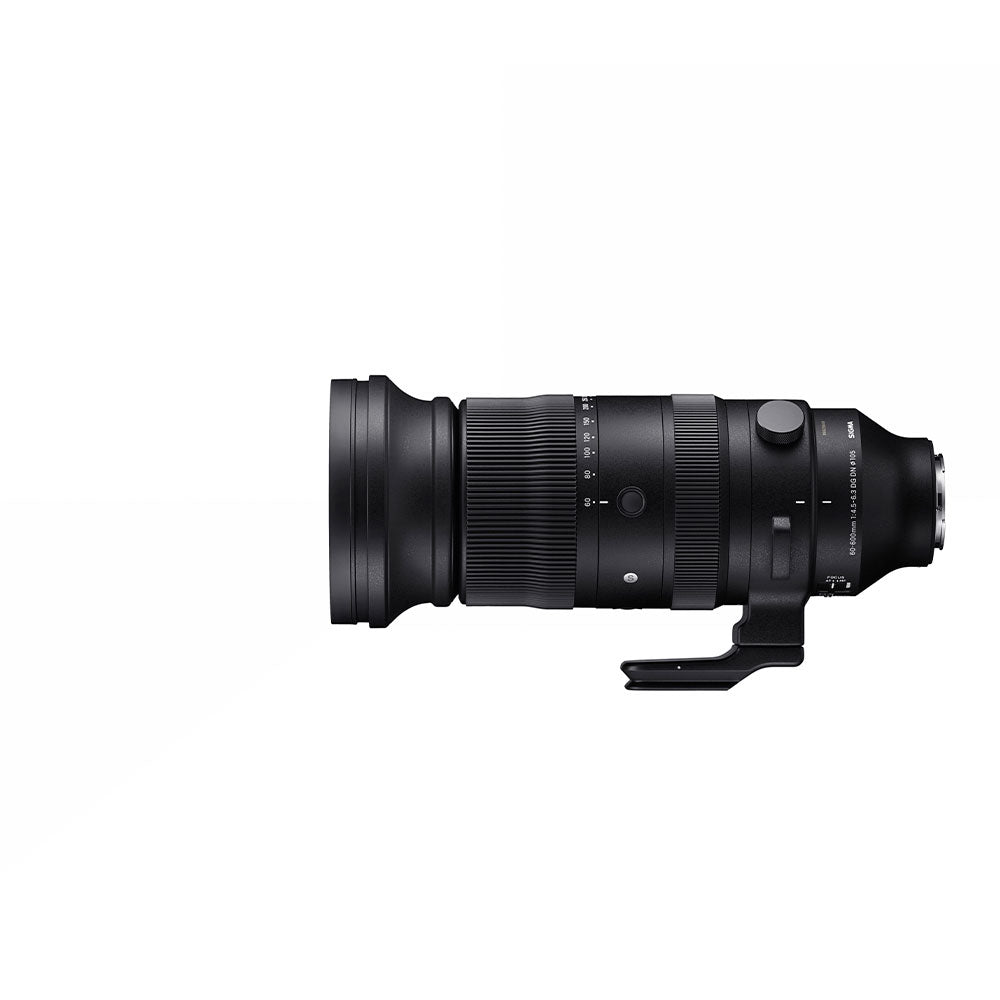

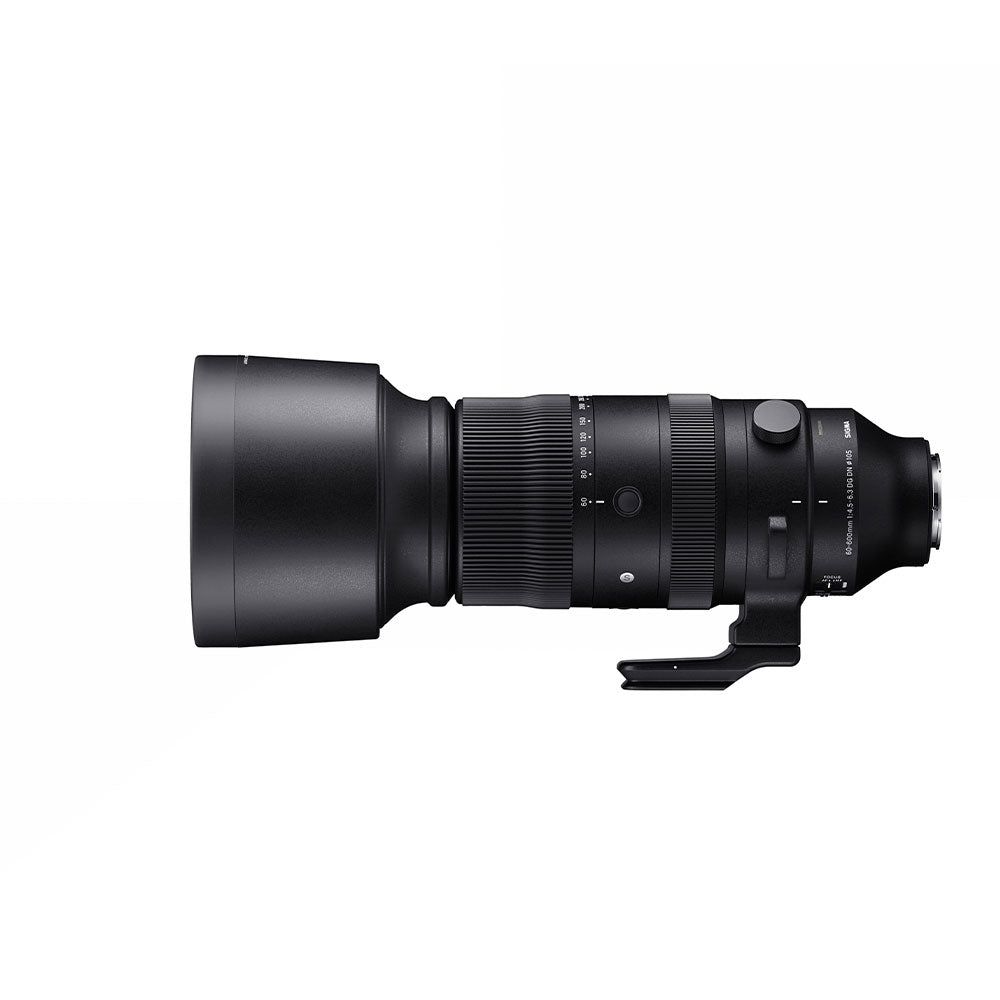

The SIGMA 60-600mm F4.5-6.3 DG DN OS | Sports is a high-power ultra-telephoto zoom lens exclusively for full-frame mirrorless cameras with a unique 10x focal length. The lens delivers high optical performance throughout the entire zoom range. The newly developed linear motor delivers unprecedentedly fast and precise autofocusing. In addition, the newly developed algorithm “OS2” enables image stabilization of 7 stops at the wide end and 6 stops at the telephoto end. It is also equipped with a Dual Action Zoom, Dust and Splash Resistant Structure, and the customizable functions and specifications of SIGMA’s Sports line. This lens is a one-of-a-kind ultra-telephoto zoom lens combining high magnification with an extremely high level of image quality and mobility.
The one and only 60-600mm zoom lens, able to handle every situation from standard to ultra-telephoto all by itself
The SIGMA 60-600mm F4.5-6.3 DG DN OS | Sports is an ultra-telephoto 10x zoom lens for full-frame mirrorless cameras that covers a zoom range of 60-600mm, a range only available from SIGMA. It enables users to seamlessly capture scenes from close-ups to long distance shots without changing lenses, even in difficult situations such as air shows or professional sports events. SIGMA employed the latest optical design to effectively correct chromatic aberrations that tend to occur in the ultra-telephoto range using a variety of high quality materials, including FLD and SLD glass elements. The lens captures uncompromising high image quality in the unique focal length range of 60-600mm. The minimum focusing distance is 45cm at the wide end, and at the focal length of 200mm, the lens offers a maximum magnification ratio of 1:2.4, allowing users to also enjoy the lens as a telephoto macro lens. The autofocus of the SIGMA 60-600mm F4.5-6.3 DG DN OS | Sports makes use of the newly developed linear motor “HLA (High-response Linear Actuator)”. This high-output linear motor and advanced electronic control realize a quiet autofocus with unparalleled high speed and high precision. The new motor also enables high focus-following performance, ensuring that the decisive moment is not missed in sports photography and any other situation where the subjects are in motion, from motor vehicles to birds in flight. The OS (Optical Stabilizer) function employs SIGMA’s newly developed algorithm “OS2”. The new algorithm significantly improves image stabilization performance, with 7 stops at the wide end and 6 stops at the telephoto end. This allows the lens to capture powerful and dynamic moments with a rich sense of motion. The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, and Mode 2 is best suited for fast panning shots, for example in motorsports and other dynamic situations. In Mode 2, an acceleration sensor combined with SIGMA’s Intelligent OS, an algorithm specially designed for panning shots, enable effective image stabilization even when the camera is moved vertically or diagonally, regardless of the horizontal and vertical orientation of the lens. This means that the movement of the subject can be expressed without losing the effect of panning shots. The lens features a multi-material structure, in which materials such as magnesium, CFRP*1, and TSC*2 are optimally arranged according to their characteristics. As a result, the lens barrel is lighter in weight while retaining the same robustness as previous models, thereby providing high versatility in a variety of scenes and applications. The lens supports Dual Action Zoom, allowing users to use both rotary zooming by rotating the zoom ring and straight zooming by grasping the tip of the lens. This enables both precise and quick operation in any given situation. The mount connection, manual focus ring, zoom ring, switches, switch panel and exterior connection are all dust and splash resistant* to prevent dust and dirt from entering the lens. Further, the front element of the lens features a water and oil repellent coating to facilitate maintenance when water droplets or dust adhere to the lens.
High customizability and build quality of SIGMA’s Sports line
The SIGMA 60-600mm F4.5-6.3 DG DN OS | Sports is equipped with substantial features of SIGMA’s Sports line standard of high-mobility, high-performance lenses. Equipped with a Focus Limiter switch, the lens enables users to limit the focus driving range during AF when necessary, allowing quick and precise focusing. Further, the lens features three AFL buttons* ready to be assigned to preferred functions using the camera. The AFL buttons are easy to operate regardless of how the camera is oriented or which settings are used. For the L-Mount version, the SIGMA USB DOCK UD-11 can be used to set OS operation or focus limiter range for the Custom Mode switch. The lens body incorporates an Arca Swiss compatible magnesium alloy tripod socket. The leg can be removed and replaced with other interchangeable tripod sockets (sold separately) or attached to a monopod, allowing for a multitude of different uses and situations. The L-Mount version of the lens is compatible with the SIGMA TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2.0x). Using a tele converter, the focal length can be multiplied by 1.4x and even 2x, for AF-enabled shooting at ultra-telephoto focal lengths of up to 1200mm.
SPECIFICATIONS
- Focal Length . 60 mm - 600 mm
- Minimum Aperture . F22 - F32
- Lens Construction . 27 elements in 19 groups
- Angle of View . 39.6 - 4.1°
- Number of Diaphragm Blades . 9 (Rounded diaphragm)
- Minimum Focusing Distance . 45 - 260 cm / 17.8 - 102.4 in
- Maximum Magnification . 1:2.4
- Filter Size . 105 mm
- Dimensions . Diameter: 119.4 mm × 279.2 mm / 4.7 in × 11.0 in
- Weight . 2,495 g / 88 oz
